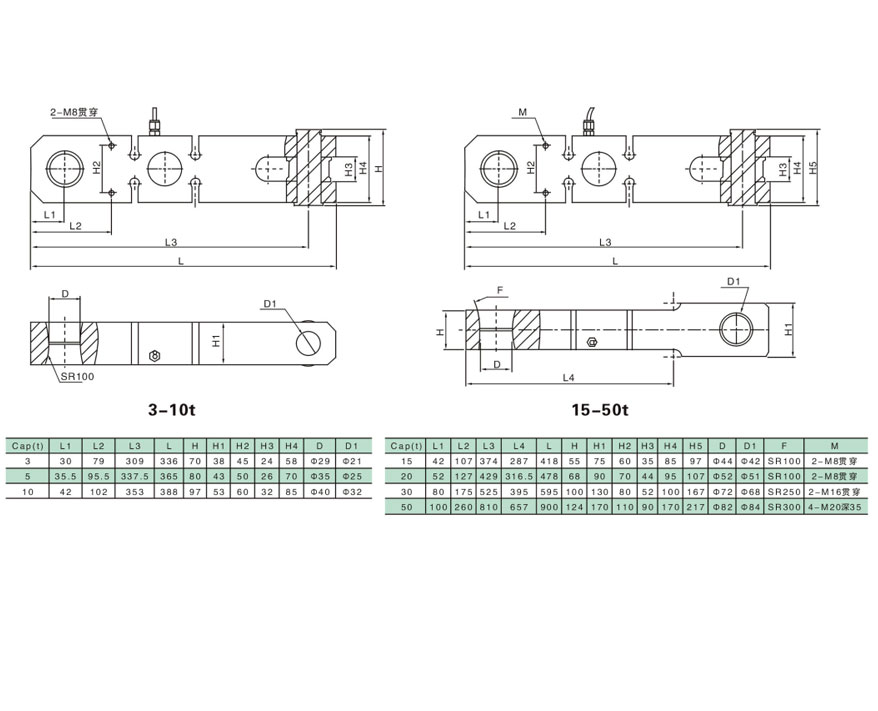

DG-Q

發布日期 : 2019-06-22 Print



適用于吊秤等計量設備中。

Technical Parameter

Technical Parameter
Rated Load 3~50t
Rated Output 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V～12V(AC or DC)
Maximum Excitation Voltage 15V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 380±10Ω
Output Impedance 350±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30～+70)℃
Compensated Temperature Range (-20～+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Alloy Steel
Protection Class IP67
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+:Red
Input-:Black
Output+:Green
Output-:White
