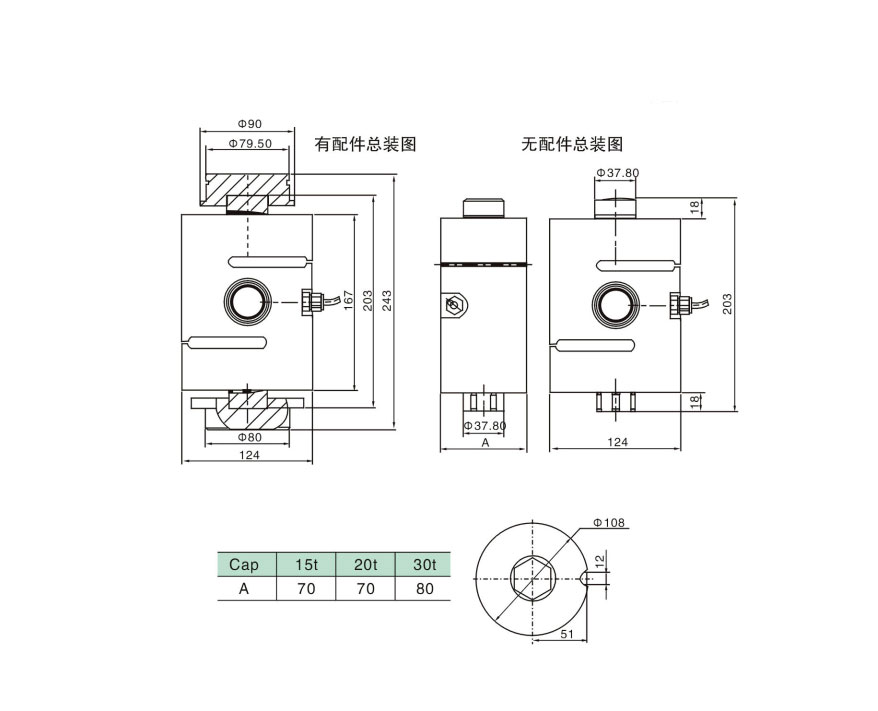

ST-GF

發布日期 : 2019-06-23 Print



鋼制“S”型稱重傳感器，承受拉.壓外力均可，輸出對稱性好，結構緊湊，安裝方便，可用于制造機電結合秤.吊鉤秤.料斗秤及各種專用秤.工藝秤等。

S type load cell, tension and compression, good output symmetry, compact structure, simply to install, full range of capacities.?Suitable for electromechanical scale, crane scale, hopper scale and various special scales.

技術參數Technical Parameter
額定載荷Rated Load 15-30t
靈敏度Sensitivity 2.0000±0.002mV/V
綜合誤差Total Error ±0.02%F.S
蠕變Creep(30minutes) ±0.02%F.S
推薦工作電壓Recommended Excitation Voltage 5V～12V(AC or DC)
最大工作電壓Maximum Excitation Voltage 15V(AC or DC)
零點平衡Zero Balance ±1%F.S
輸入阻抗Input Impedance 380±10Ω
輸出阻抗Output Impedance 350±5Ω
絕緣阻抗Insulation Impedance ≥5000MΩ
安全過載率Safe Overload 150%F.S
極限過載率Ultimate Overload 200%F.S
工作溫度范圍Operating Temperature Range (-30～+70)℃
溫度補償范圍Compensated Temperature Range (-20～+60)℃
輸出溫度影響Temperature Effect On Load ±0.02%F.S/10℃
零點溫度影響Temperature Effect On Zero ±0.02%F.S/10℃
材質Construction 合金鋼Alloy Steel
防護等級Protection Class IP67
引用標準Citation GB/T7551-2008/OIML R60
接線方式Mode of Connection 輸入+E:紅?Input+ E:Red
輸出-S:白?Output- S:White
輸入-E:黑?Input- E:Black
輸出+S:綠?Output+ S:Green
